A library of example installation schematics providing installation options.

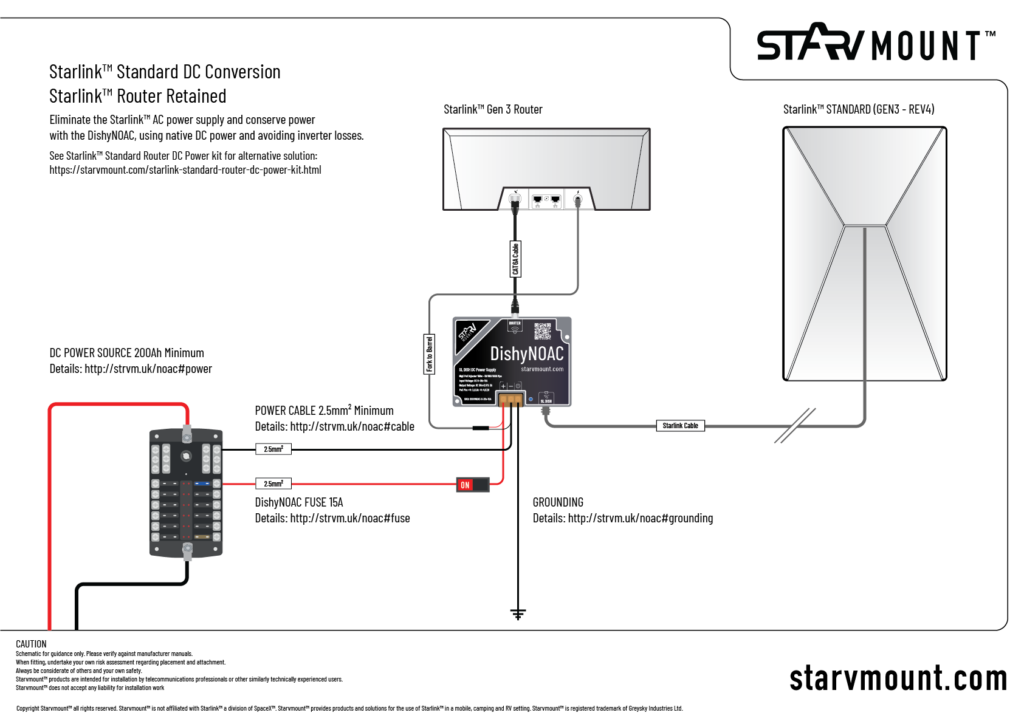

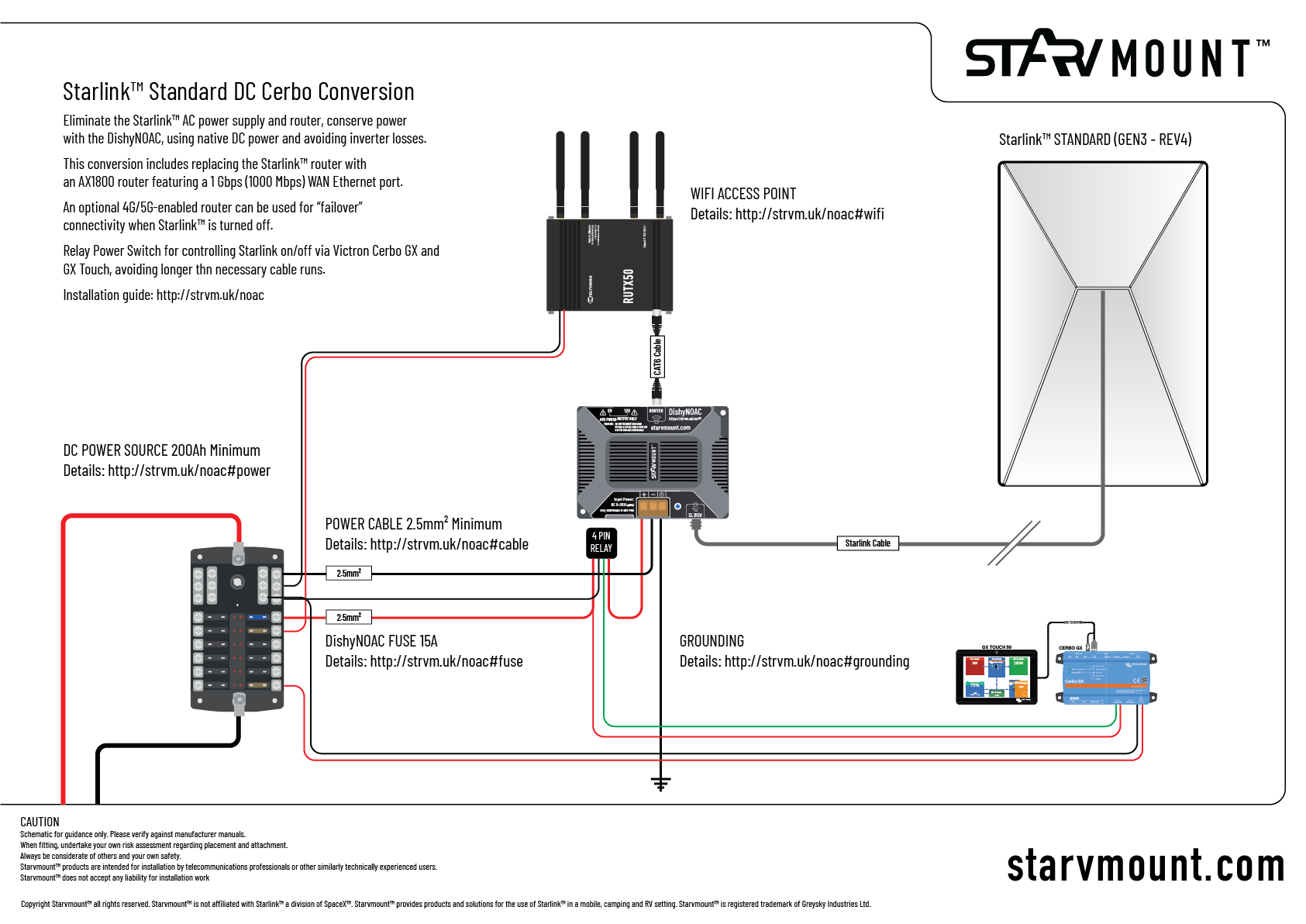

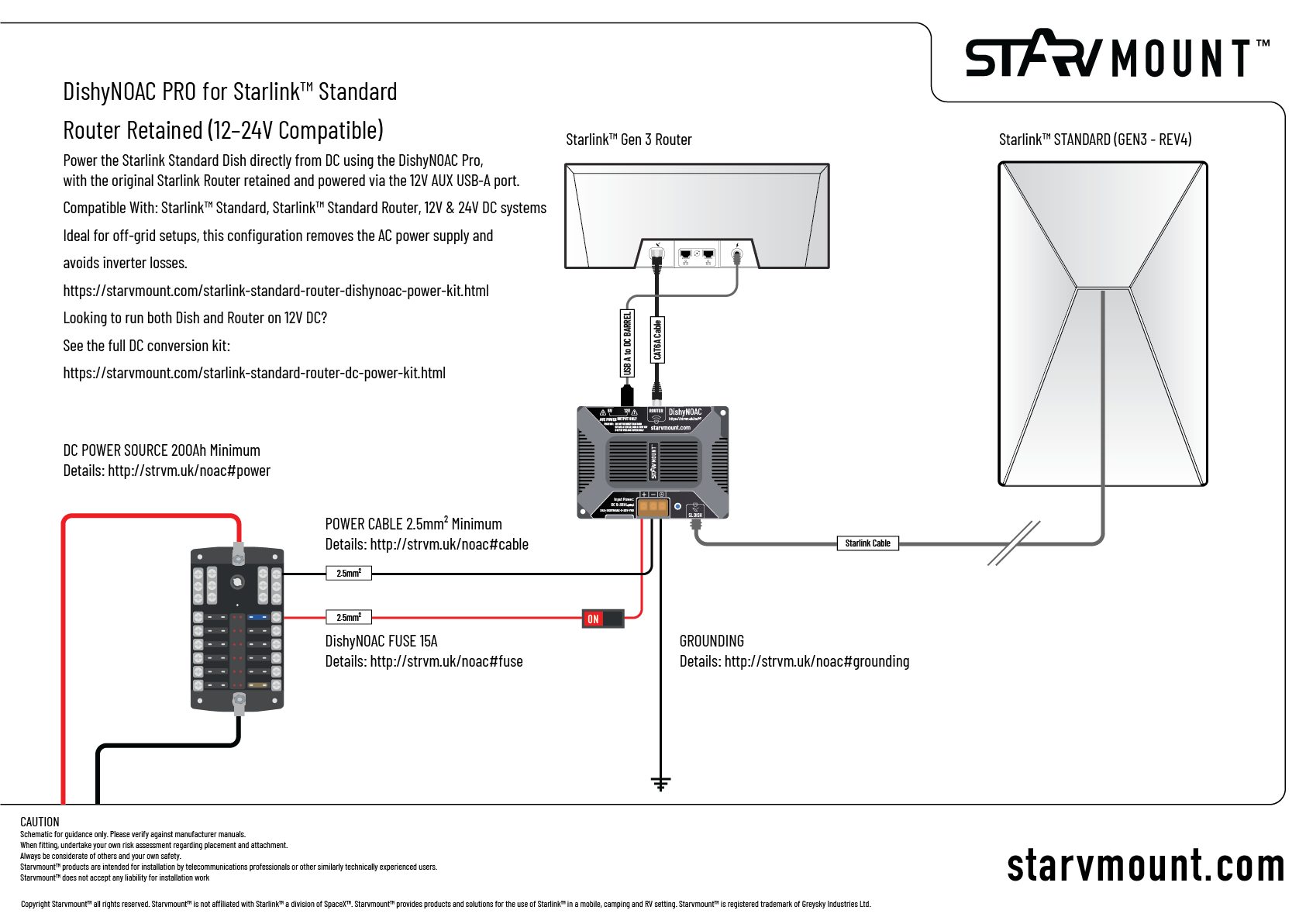

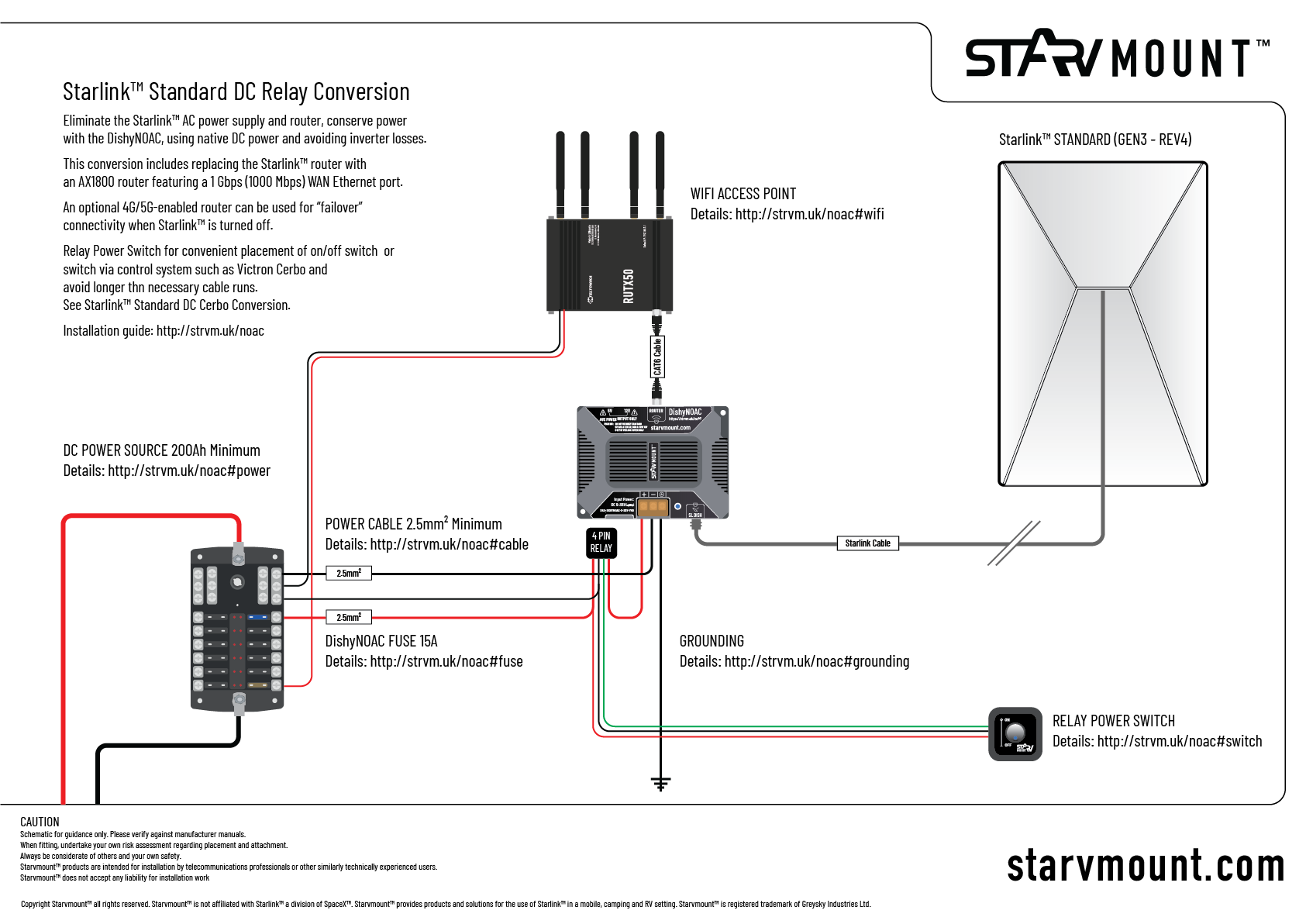

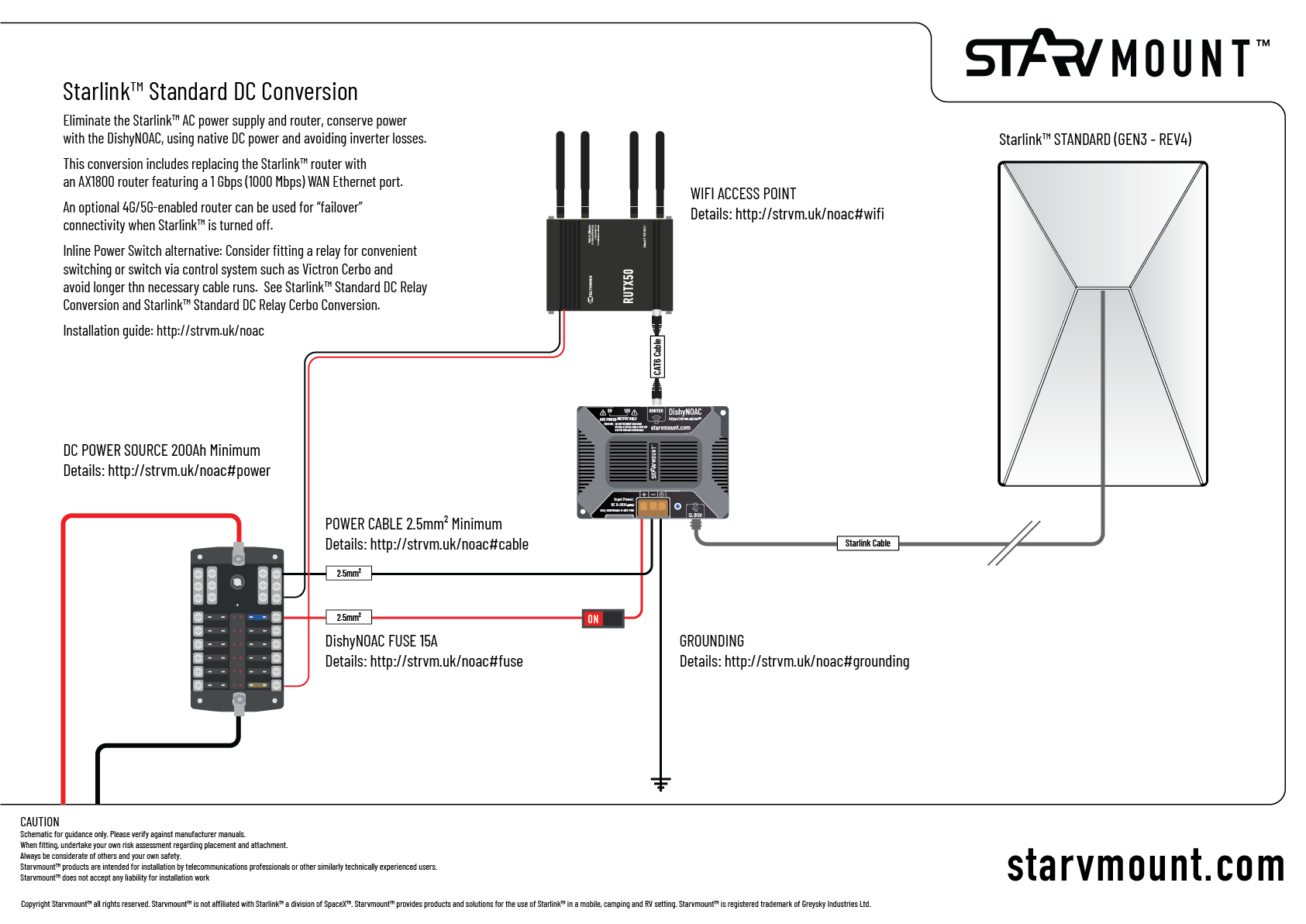

DishyNOAC - STARLINK™ STANDARD (GEN3 - REV4)

Schematics based around the DishyNOAC

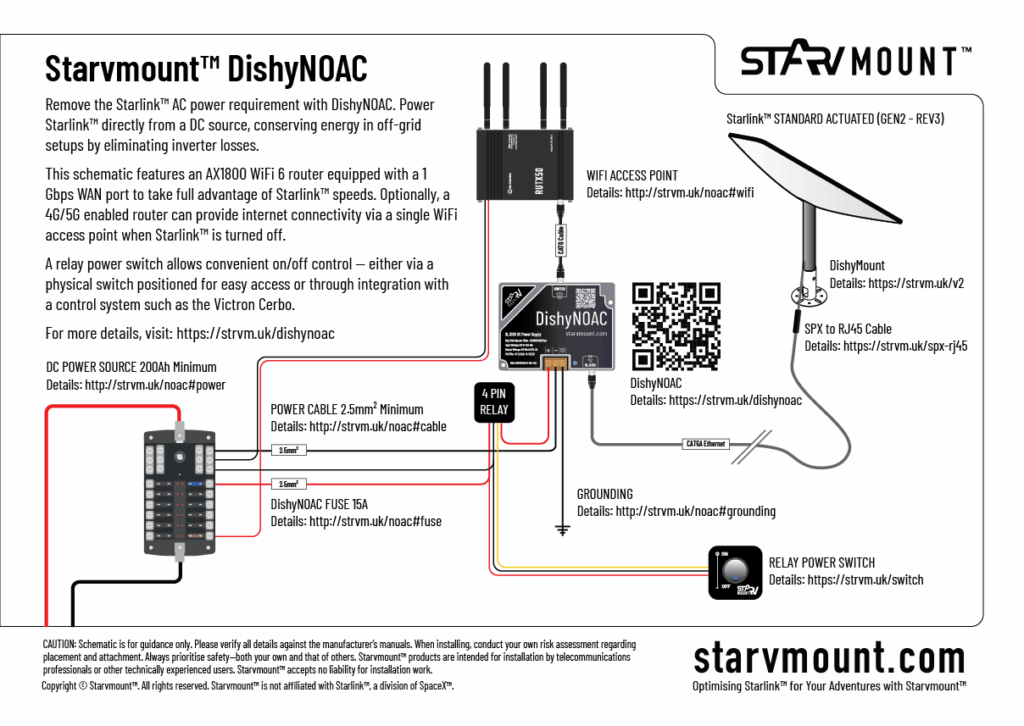

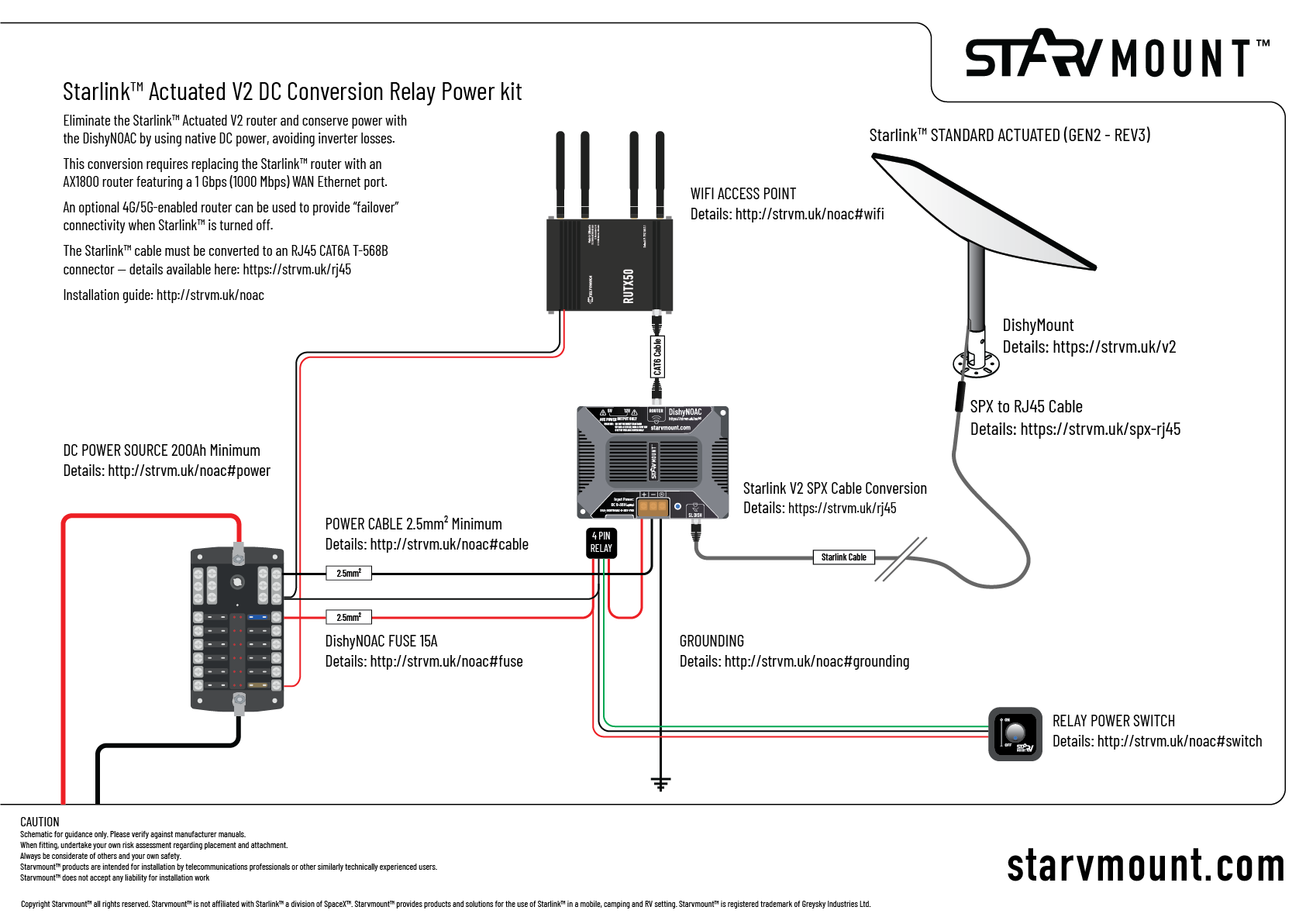

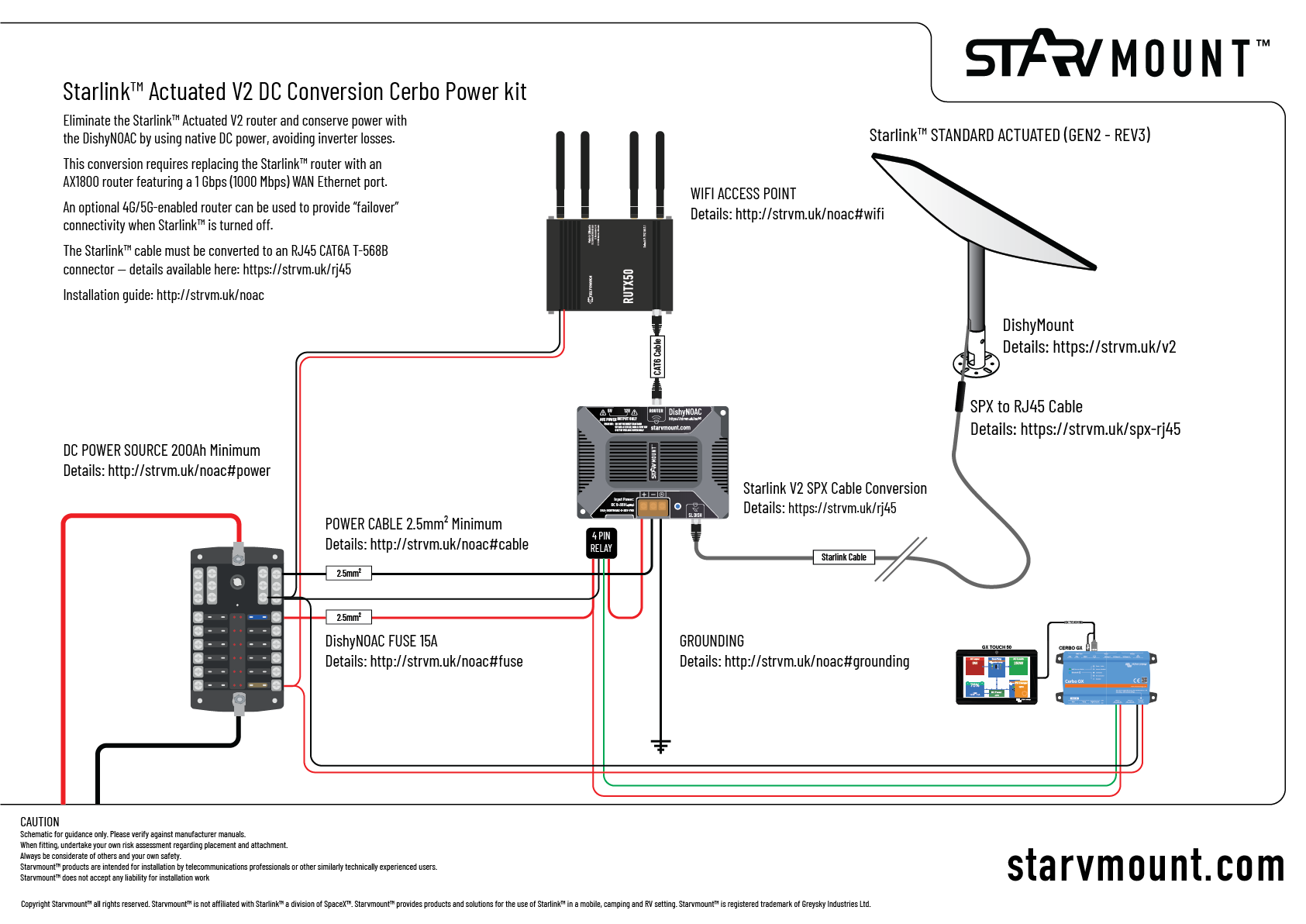

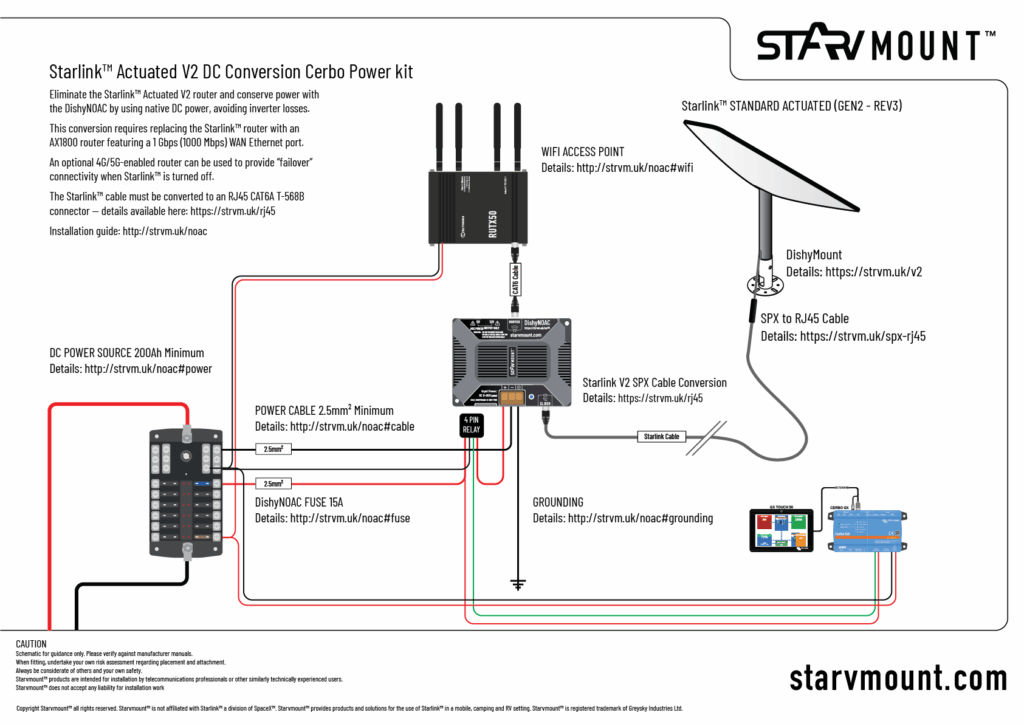

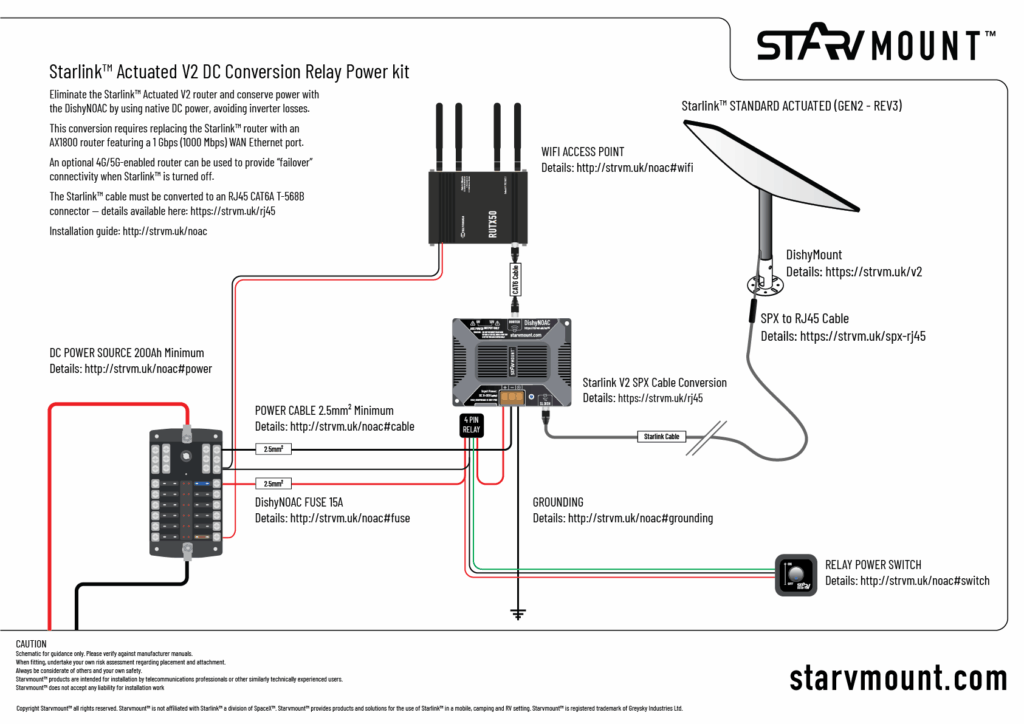

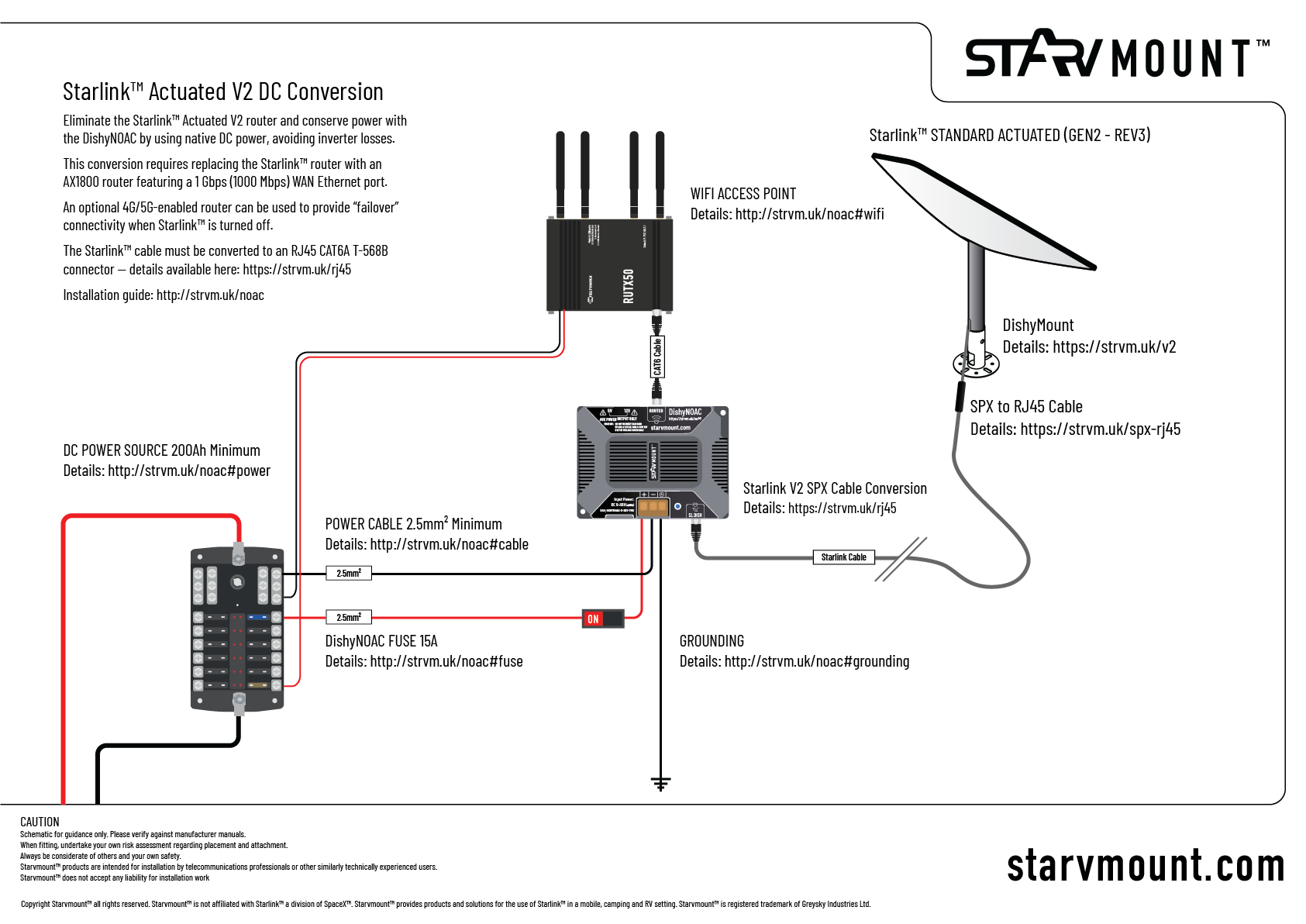

DishyNOAC - STARLINK™ STANDARD ACTUATED (GEN2 - REV3)

Schematics based around the DishyNOAC

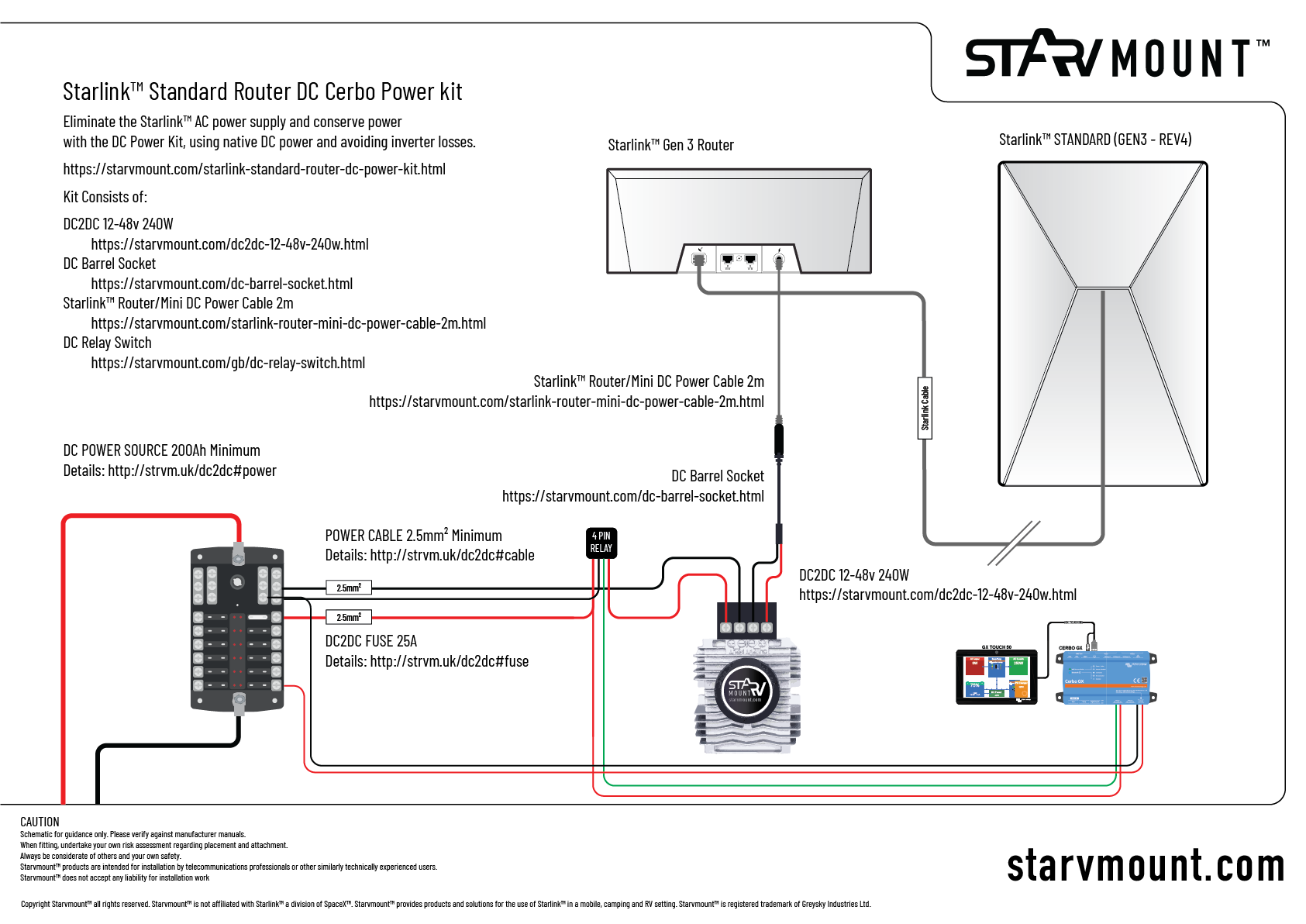

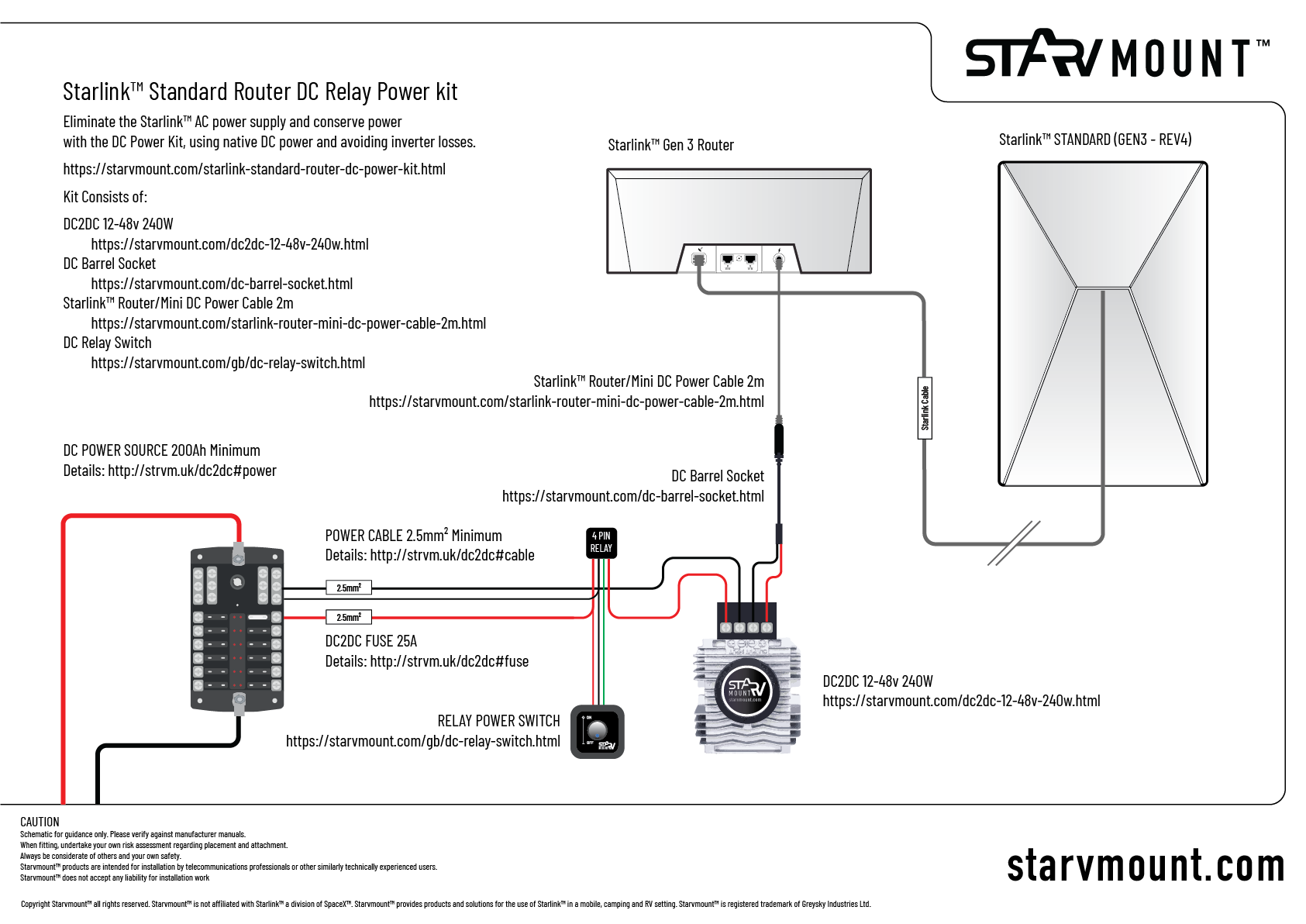

DC2DC - STARLINK™ STANDARD (GEN3 - REV4)

Schematics based around the Standard Router 12v DC Power kit

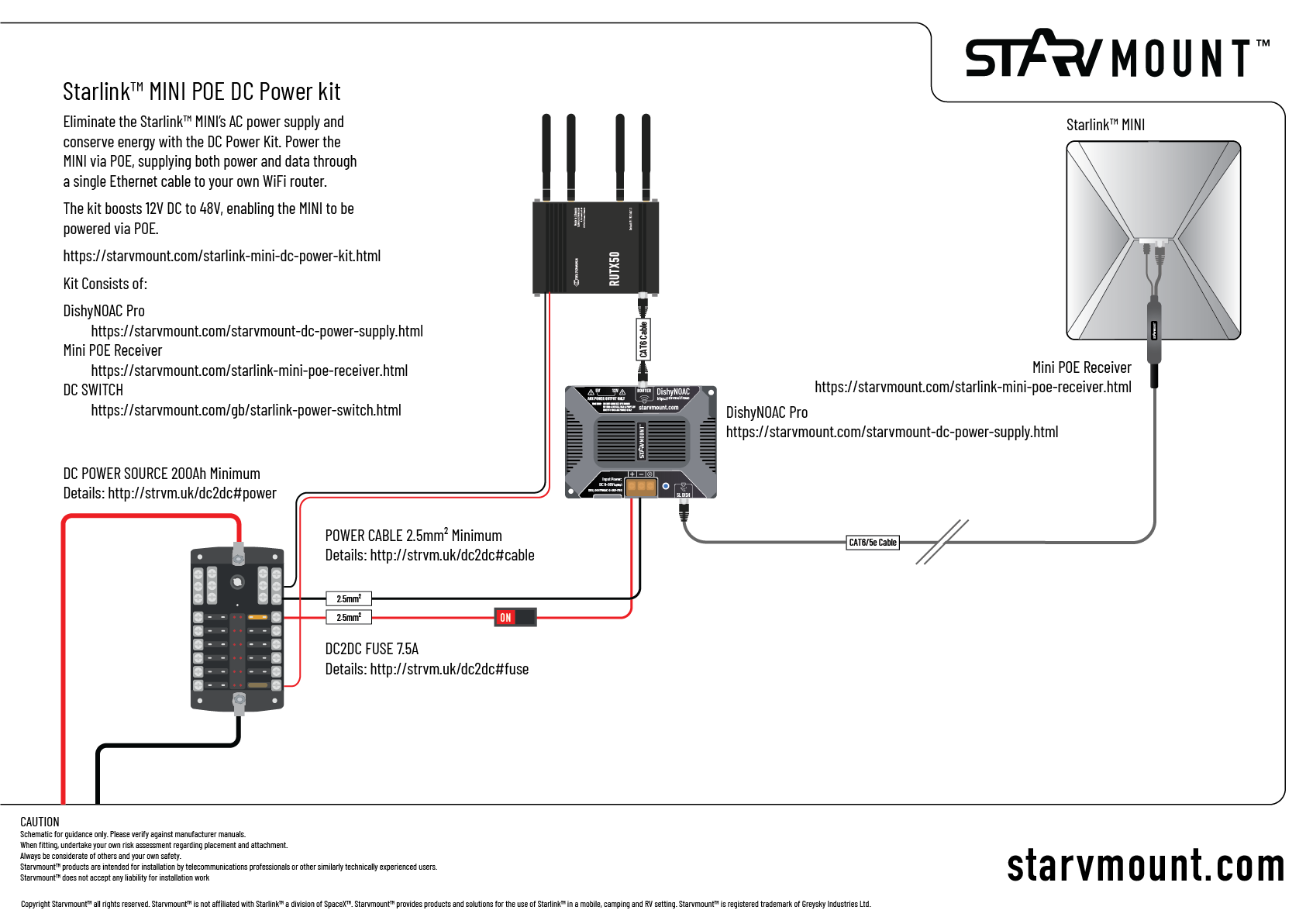

DC2DC - STARLINK™ MINI (2024)

Schematics based around the Starlink™ Mini 12v DC Power kit

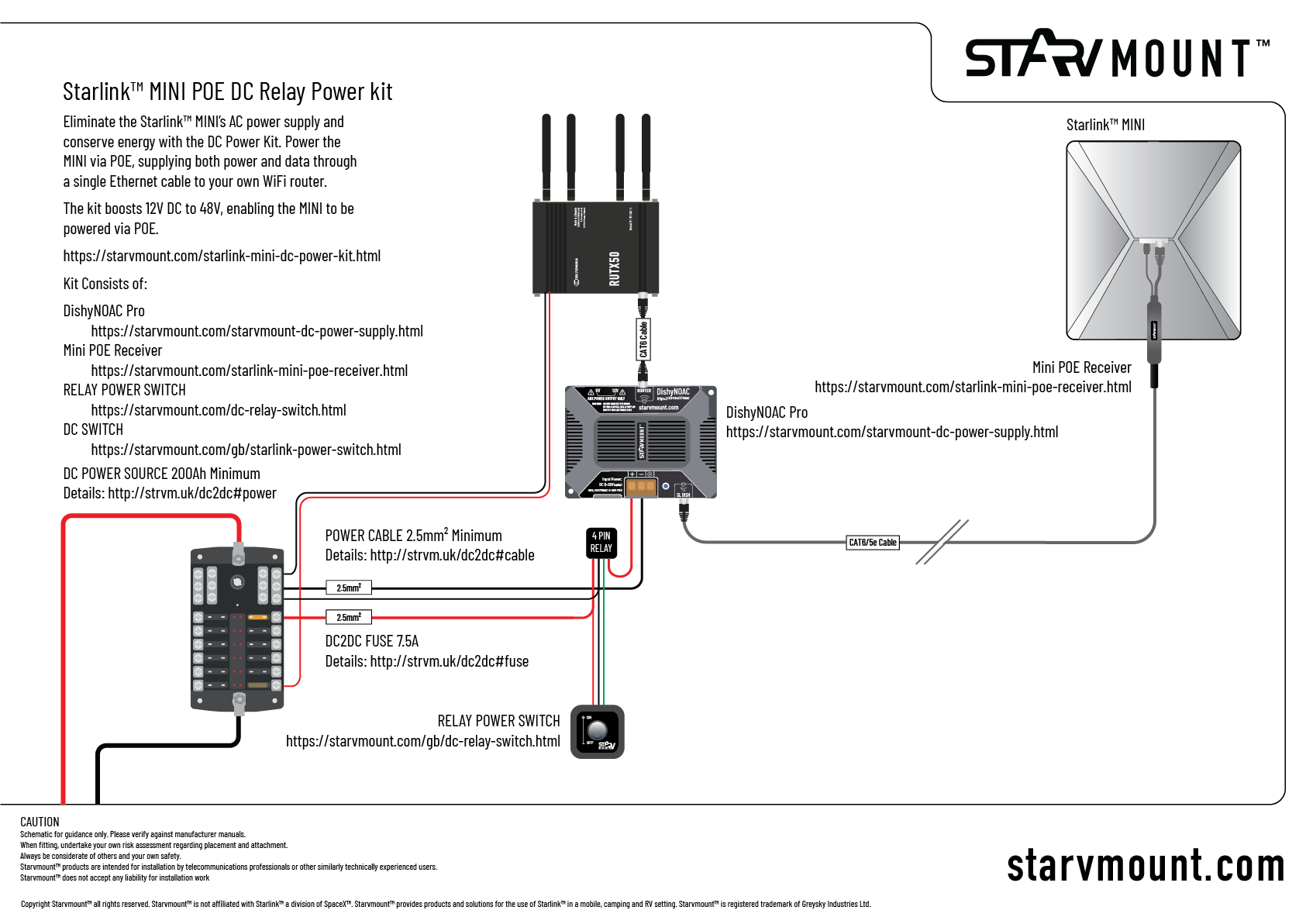

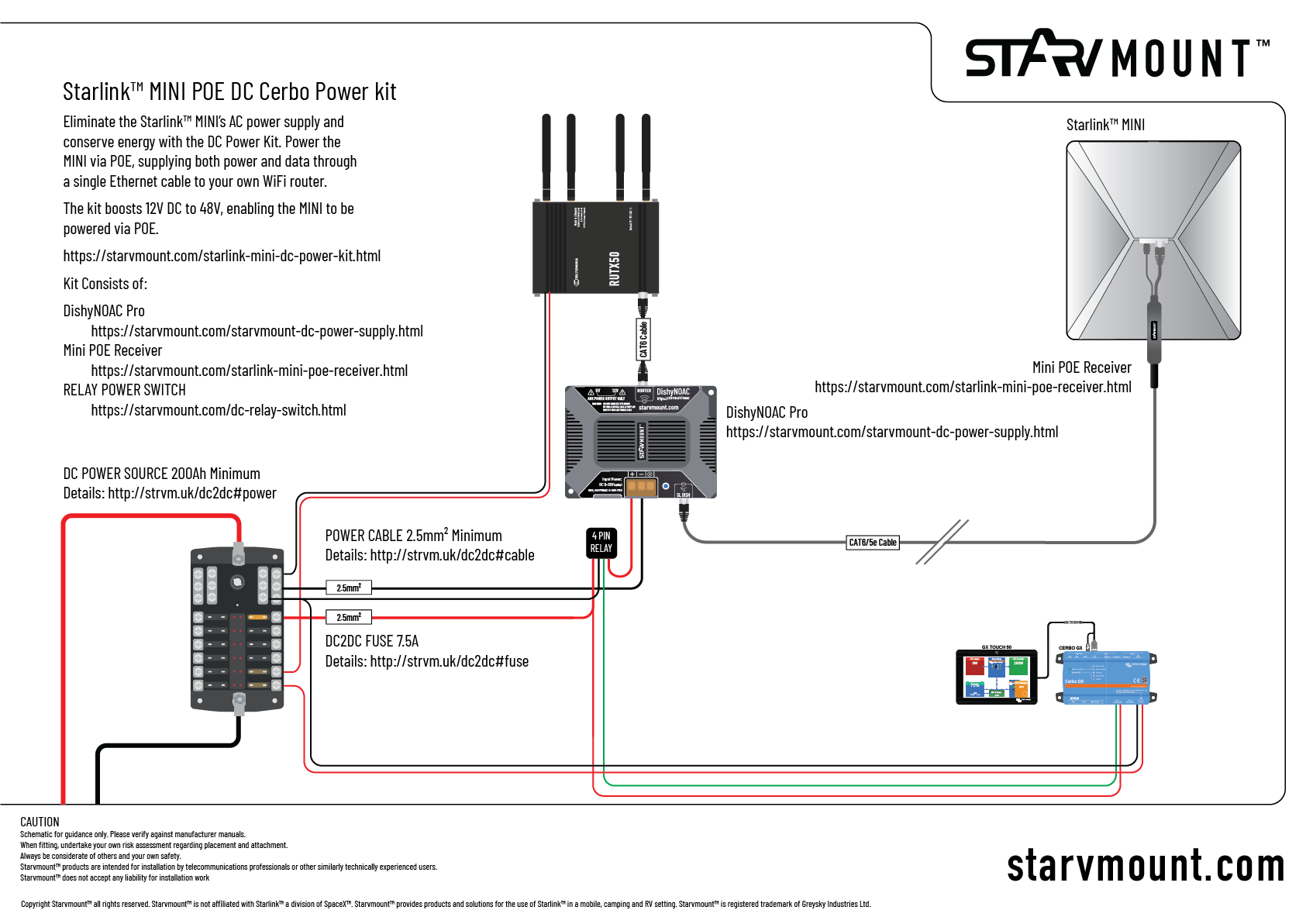

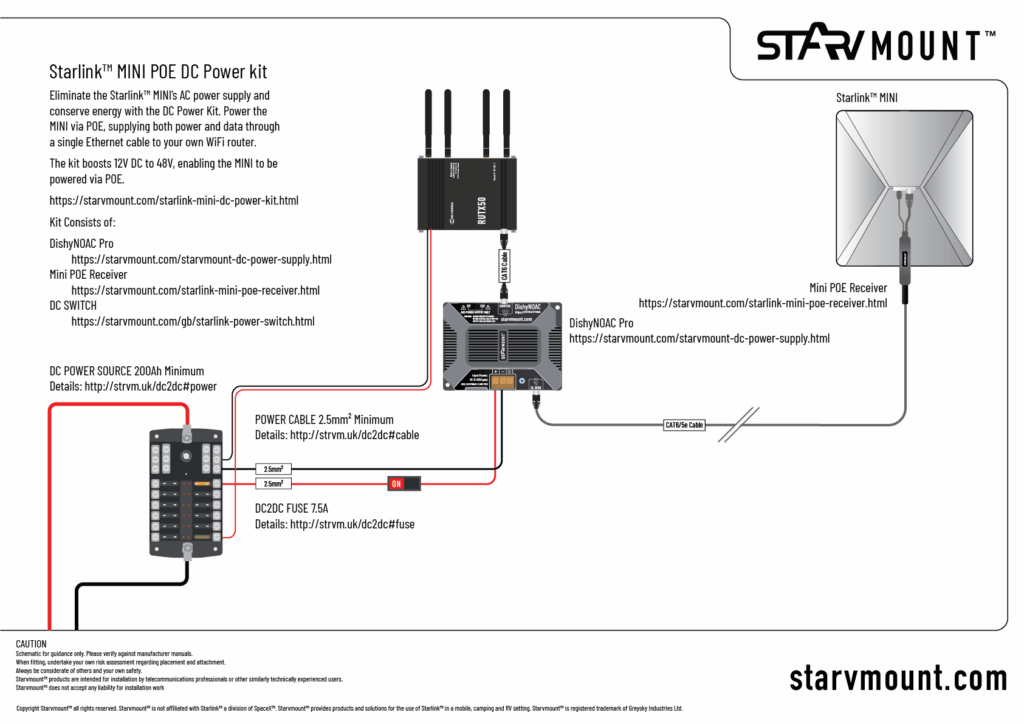

DC2DC - STARLINK™ MINI POE

Schematics based around the Starlink™ MINI POE DC Power Kit
